Pipe Welding

1. Double clamping positioning, good positioning effect, no need to locate spot welding, improve welding efficiency.

2. Pulse power supply, closed design of the welding head, good protection effect, uniform and beautiful weld seam.

3. Lightweight structure design, suitable for assembly site with small space.


Description

KHGC Closed Head Orbital Welder  is a specialized auto arc welding machine whereby the arc is rotated mechanically through 360° around a static work piece of tube to tube with tube specification φ3～φ114 mm and tube thickness 0.8～3mm.

KHGC could address the issue of operator error in gas tungsten arc welding(GTAW).

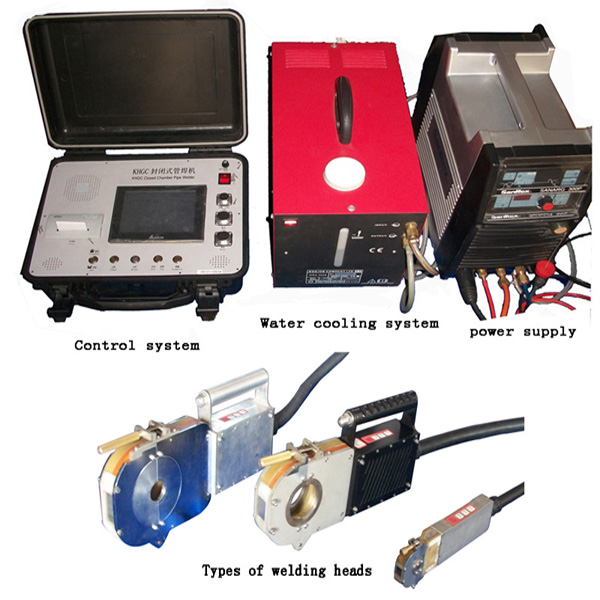

KHGC is composed of power supply, control system,cooling system and welding head.

KHGC could process carbon steel, alloy steel, stainless steel and titanium alloy.


KHGC is capable of making welding beam with high seal performance and clean outlook.

KHGC is designed with tiny welding head, very convenient to operate in narrow tube installation site.

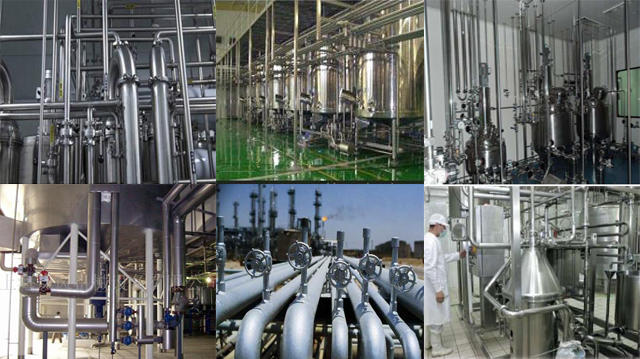

Therefore, KHGC orbital welder is widely adopted in the installation of plants such as food& alcohol plant,chemical industry, medicine and other industries.




1.To addresses the issue of operator error in GTAW . computer-controlled process runs with little intervention from the operator.

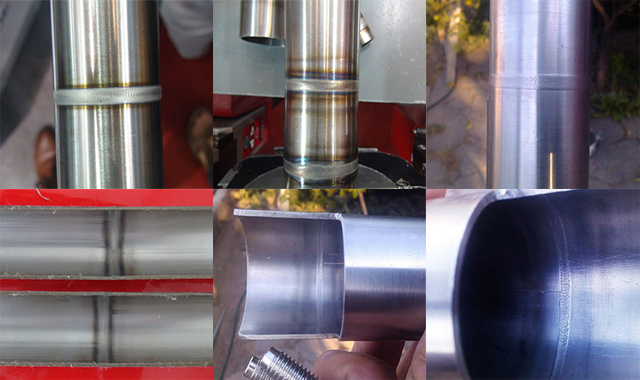

2.Beautiful welding beam with excellent seal performance.   TIG welding, no feeding wire and closed welding space by welding head, together makes high seal performance without new impurity, so its welding beam looks beautiful.

3.Tiny welding head, very convenient to operate in narrow tube installation site.

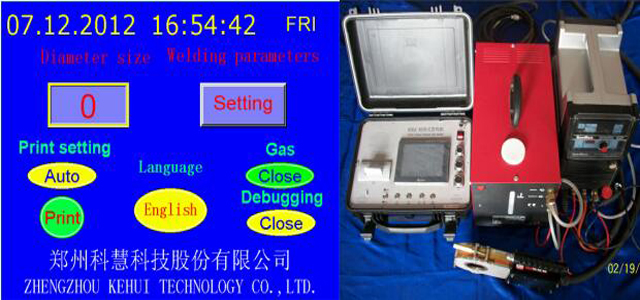

4.To guarantee high quality repeatable welding. a successful programming monitors variables and performs periodic samples during its test welding. LCD touch screen, easy to input.
Intelligent welding . 100 successful programming stored in PLC, just pick one.

5.High productivity.  2-3 times higher than conventional TIG welding.

6.Easy operation. Clamp device to fix the two separated tubes tightly, no need for spot welding, precise positioning.

7.10 hours continuous welding. qualified welding head and power and water cooling system make it.

8.Portable, freedom of movement.

9.Stable welding. Over 20 years development & improvement based on market




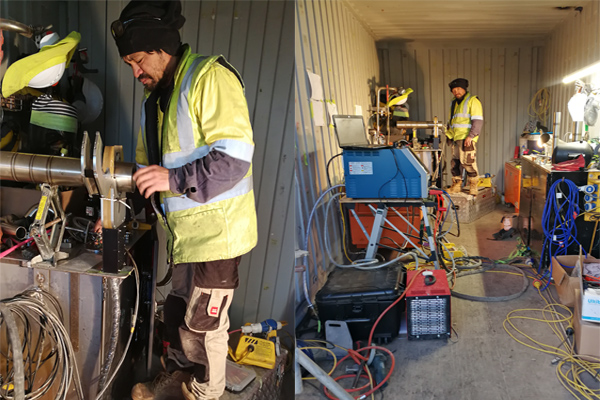

Welding Product



Certifications


Structure

a) After completing the welding program setting on the control box panel, place the tube on the positioning cover, close the positioning cover, tighten the rotating sleeve, press the start button on the remote control, start to deliver air in advance, and fill the head cavity with argon.

b) After the gas forms a stable argon gas protection environment, the welder starts to arc, and the current gradually rises from the arcing current to the welding current. At this time, the welding moment does not rotate, and the purpose is to preheat the pipe, and the process can be input through.


c) The rise time parameter is used to control. When a stable molten pool is formed on the workpiece, the torch begins to rotate. During the rotation process, there will be flat welding, downslope welding, overhead welding, upslope welding at some time.

d) This welding machine allows the user to set any segmentation of 1~6 segments within 360° according to the situation, and set them separately. Each section of welding speed, current magnitude and other parameters make the weld as a whole consistent. When the welding torch rtates o365° (the lap angle can be set arbitrarily, the welder enters the attenuation program. At this time, the machine head continues to rotate, and the current gradually decreases from the welding current to the arcing current, forming a weld joint.

e) It can be controlled by entering the fall time parameter. The welding process of the entire nozzle is automatically completed according to the setting procedure after the start button is pressed.

Parameter



Dimension of Welding Heads（mm）
	KHGC12	KHGC34	KHGC63	KHGC89	KHGC114
A	62	92	130	156	204
B	35	53	71.5	88	110
C	95	135.3	174.5	218	280
D	265	300	330	384	446
E	20	40	43	43	43
F	12.5	24	25.5	26	26

Rated input Voltage	380 V/415V±10%
Rated input capacity	16.0 KVA
Voltage allow fluctuating range	± 10 %
Phase	Three phase
Frequency	50 / 60 Hz
Rated welding voltage	TIG welding,  22V/32V
Rated voltage no-load	57V/62V
Power control mode	IGBT Inverter control
Welding current adjust range	DC 5～300A
Rated load sustained rate	40%
Current rise time	0.0 ～ 15.0 s
Weldable wall thickness	0.8-3mm
Preheating time	0.0 ～ 0.1 s
Current decline time	0.0 ～ 25.0 s
Pulse frequency	0.5 ～ 500 Hz
Duty ratio adjustment range	15% ～ 85%
Cooling type	Water cooling/ Air cooling
Weight	19 kgs
Size (L×W×H)	450×210×420 mm
Insulation class	H
